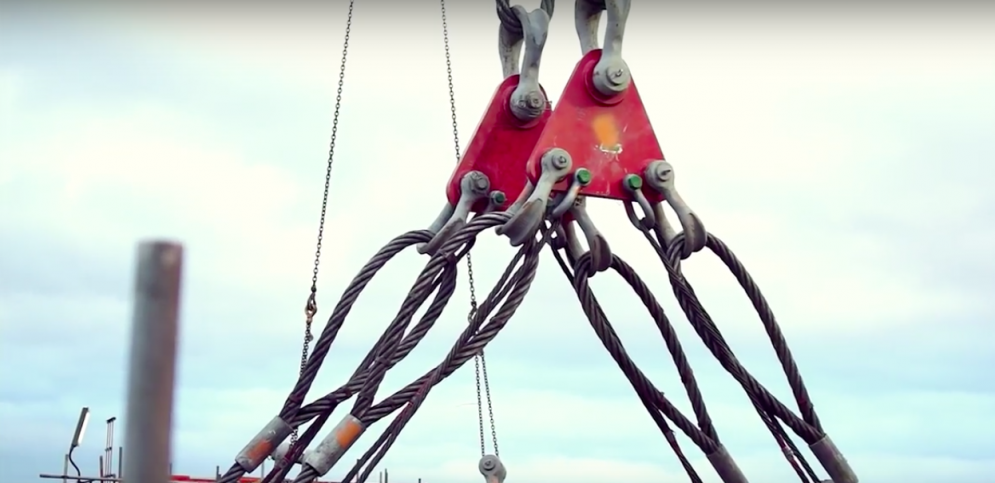

Load Equalizing Triangles
Load Equalizing Triangles with capacity from 25 to 250 tons. When using multiple sling legs this device provides a means of equalizing forces within the legs. Connection is made via standard Grade “S” bow shackle and can be used with chain, wire rope or synthetic slings. Ideal in compensating for differences in load lift points and sling lengths.
Capacity | Weight | Hole Diameter | Center to center of eyes |
---|---|---|---|
25t | 60 lbs | 2 inches | 14 inches |
35t | 156 lbs | 2 3/8 inches | 18 inches |
55t | 115 lbs | 3 inches | 18 inches |
150t | 300 lbs | 4 1/2 inches | 16 inches |
250t | 360 lbs | 5 1/8 inches | 24 inches |
